Firmware Updater

NOTE: 1.4.0 was a new version of Firmware Updater. If you have previously installed any prior versions of Firmware Updater, you will need to uninstall them before installing any newer version. This can be done via Control Panel > Programs > Programs and Features > Firmware Updater > Uninstall/Change.

The Lake Shore Firmware Updater allows firmware to be easily updated on newer Lake Shore instruments through a USB interface.

Publisher: Lake Shore Cryotronics, Inc.

Supported operating systems: Windows XP and newer
Supported instruments: Models 121, 224, 335, 336, 350, 372, 705, and 776

NOTE: You must also download the firmware file.

Download the Model 776 firmware file
Download the Model 705 firmware file
Download the Model 372 firmware file
Download the Model 350 firmware file
Download the Model 336 firmware file
Download the Model 335 firmware file
Download the Model 224 firmware file
Download the Model 121 firmware file


The installation will take approximately 4 minutes


The following prerequisites are required:

  • Windows Installer 3.1
  • .NET Framework 3.5 SP1

If these components are not already installed, you can download the application setup zip file (197 kB) to install the prerequisites.

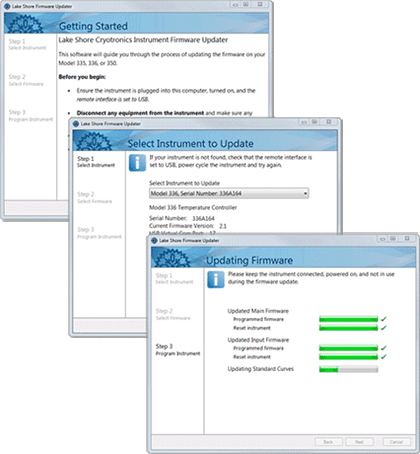

firmware updater screenshots

For the Model 425 firmware update

Please contact Lake Shore Service.

For XIP instrument firmware updates
